The CuroMED pocket fetal doppler helps doctors and mothers listen to an unborn child’s heart beat.

It is a hand held easy to use device, which enables monitoring at the comfort of your home. The in

built speaker with superior sound quality and TFT display brings out the best output of the fetus’s

heartbeat.

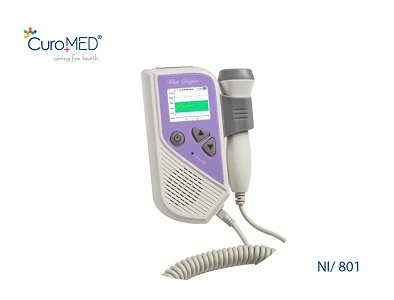

Model NI/801 comes with TFT display and Amp curve (Put image of display)

Features:

1) Built in speaker

2) Easy to use

3) LCD display with option of wave/digital display.

4) Comes with adapter

5) High sensitivity.

6) CE certified safe for use.

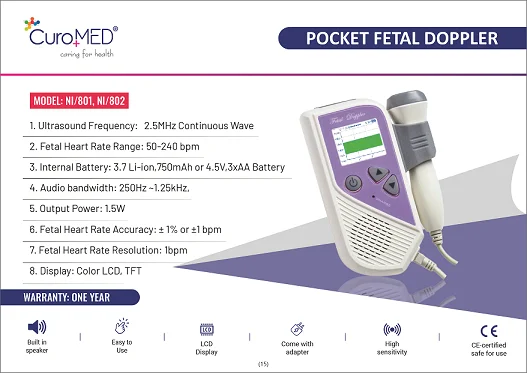

SPECIFICATIONS

Warranty: 1 year of warranty.

1. Ultrasound Frequency: 2.5MHz Continuous Wave

2. Fetal Heart Rate Range: 50-240 bpm

3. Internal Battery: 3.7 Li-ion,750mAh or 4.5V,3xAA Battery

4. Audio bandwidth: 250Hz ~ 1.25kHz,

5. Output Power: 1.5W

6. Fetal Heart Rate Accuracy: ± 1% or ±1 bpm whichever is great

7. Fetal Heart Rate Resolution: 1bpm

8. Designed and tested to meet electrical safety standards: IEC6061-1, IEC60601-1-2

9. CE certified

Comes with in built speaker for superior sound quality. Has an audio jack for headphones. Perfect for

listening to the sound of fetus loud and clearly.

Operation instruction:

1) Turn on the device by pressing the ‘ON/OFF’ button.

2) Apply coupling gel to the surface of probe.

3) Expose the abdomen of mother and start with the probe on the midline of the abdomen and

aimed downward behind the pubic bone.

4) It is important to maintain good coupling at all times with no air bubbles between probe and

abdomen.

5) Move the probe slowly to scan for heartbeat.

6) The fetal heartbeat sounds like a galloping horse and is about twice the rate of mother’s

heart beat.

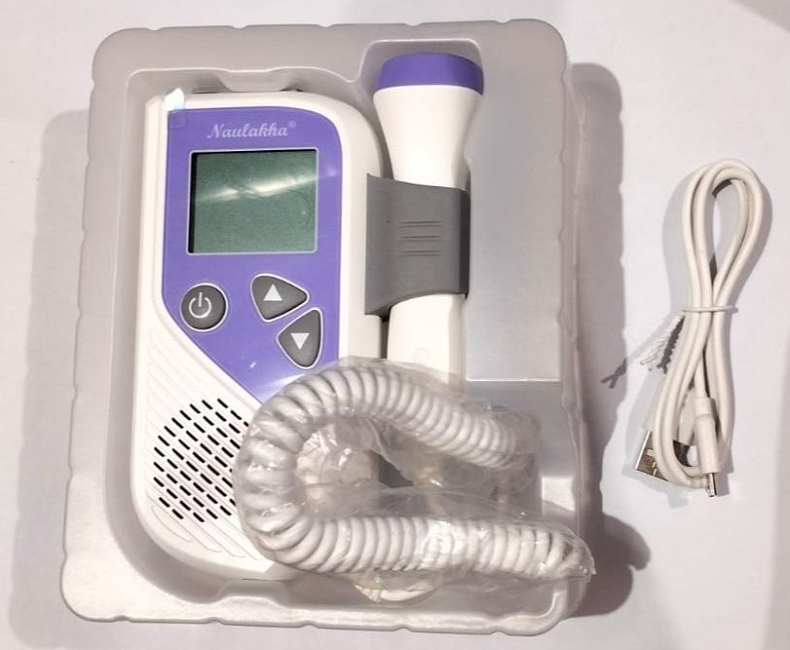

Accessories: The product comes with rechargeable

Ni-MH battery and an instruction manual.

Model NI/801 comes with USB cable and adapter.

Bring home the CuroMed fetal doppler to fill your heart with the sounds of joy.
